90° Angle
Experience unmatched versatility with Magswitch 90° Welding Angles, designed for precision, power, and ease of use. Built with advanced Magswitch magnetic technology, these angles deliver strong holding force and accurate alignment—ideal for working with larger and heavier steel components.
Price:
Request a Quote
Overview
Boost welding efficiency and precision with Magswitch 90° Welding Angles, the most versatile magnetic welding tools on the market. Built with advanced Magswitch magnetic technology, these welding angles deliver powerful hold, precise alignment, and easy adjustability—ideal for professional welders and metal fabricators.
Perfect for heavy steel welding applications, each angle allows full repositioning of magnets on both vertical and horizontal axes. Switch between external and internal configurations to suit your setup. Whether you’re working on structural steel, pipe welding, or custom fabrication, these magnetic welding angles offer unmatched flexibility.
If you want more strength, just add more Magswitch MagSquares.
FEATURES
- Lightweight with incredible strength
- Precision positioning
- MagSquares can be reversed on each axis
- Magnets turn completely On and Off – Magnets stay clean
- Holds to flat and round surfaces of steel
Product Models
| Product | Max Breakaway | Full Saturation Thickness | Max Shear | Net Weight | Magnetic Pole Footprint | Overall Height | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|

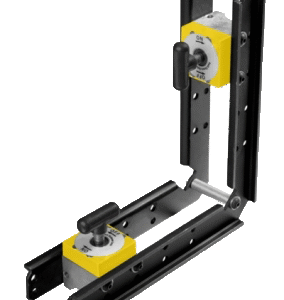

 | 90° Angle 165 8100548 | 68 kg | 6 mm | 8.4 kg | 0.8 kg | 48 x 31 mm | 205 mm | |

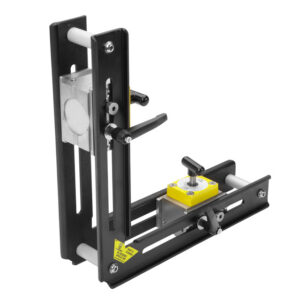

 | 90° Angle 400 8100454 | 181 kg | 3.43 mm | 9 kg | 2.8 kg | 64 x 41.26 mm | 181 mm | |

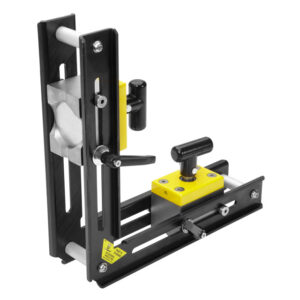

 | 90° Angle 600 8100495 | 272 kg | 10 mm | 27 kg | 3.7 kg | 75 x 51.5 mm | 272 mm | |
Product Documents
- Spec Sheet Magswitch 90 Degree Angle 165 – 8100548 (US and CA)
- Spec Sheet Magswitch 90 Degree Angle 400 – 8100454 (US and CA)
- Spec Sheet Magswitch 90 Degree Angle 600 – 8100495 (US and CA)
- Spec Sheet Magswitch 90 Degree Angle 165 – 8100548 (AU and NZ)
- Spec Sheet Magswitch 90 Degree Angle 400 – 8100454 (AU and NZ)
- Spec Sheet Magswitch 90 Degree Angle 600 – 8100495 (AU and NZ)
