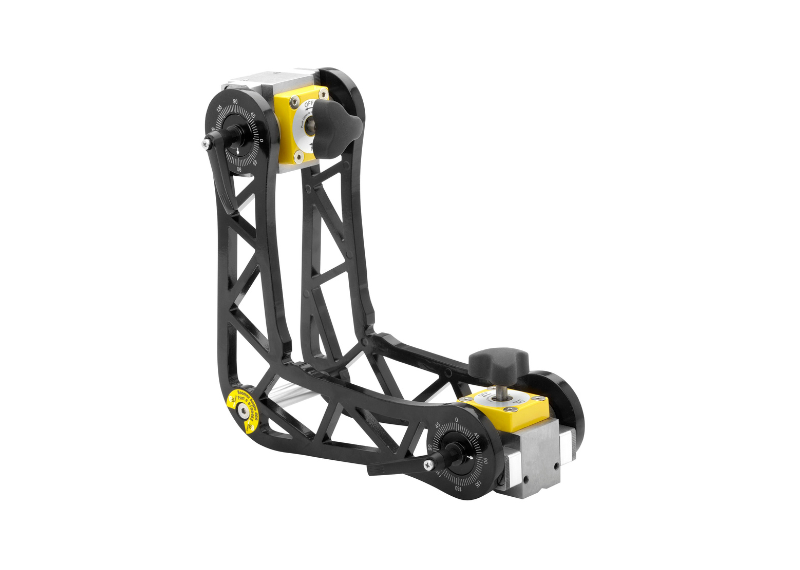

BoomerAngle
Magswitch BoomerAngles deliver unmatched flexibility with rotating MagSquares on each axis, allowing for virtually unlimited angle configurations. Built for power and precision, they’re ideal for handling larger, heavier steel in demanding welding and fabrication setups.
Price:
Request a Quote
Overview
Take control of your welding setup with Magswitch BoomerAngles, the ultimate solution for flexible and precise angle positioning. Featuring a rotating Magswitch MagSquare at the end of each axis, BoomerAngles offer a fixed 90° angle on both the inside and outside—plus full adjustability to virtually any angle in between.
Built with Magswitch magnetic technology, these welding angles deliver powerful hold, precision control, and easy operation. Ideal for working with large and heavy steel components, BoomerAngles simplify complex setups and improve welding accuracy.
Whether you’re fabricating custom frames, tackling pipe welding, or aligning structural steel, BoomerAngles give you the freedom to weld at any angle with confidence.
FEATURES
- Adjustable angle holds
- Position for odd angles in seconds
- Non-marring hold
- Magnets turn completely On and Off
- Magnets stay clean
- Does not require an electrical power source
- Holds flat and round surfaces of steel
Product Models
| Product | Max Breakaway | Full Saturation Thickness | Max Shear | Net Weight | Magnetic Pole Footprint | Overall Height | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|

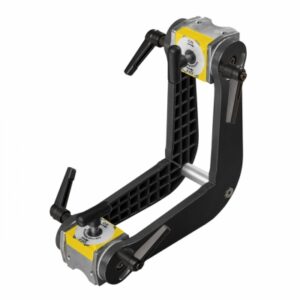

 | BoomerAngle 150 8100091 | 68 kg | 6 mm | 6 kg | 1.3 kg | 40 x 40 mm | 68 mm | |

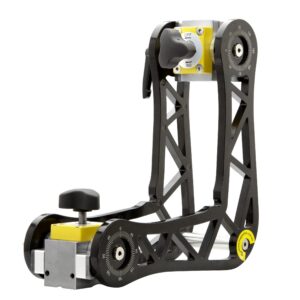

 | BoomerAngle 400 8100453 | 181 kg | 3.43 mm | 9 kg | 3.0 kg | 64 x 41.26 mm | 181 mm | |
 | BoomerAngle 600 8100090 | 272 kg | 10 mm | 27 kg | 4.4 kg | 75 x 51.5 mm | 272 mm | |
Product Documents
- Spec Sheet Magswitch BoomerAngle 150 – 8100091 (US and CA)
- Spec Sheet Magswitch BoomerAngle 400 – 8100453 (US and CA)
- Spec Sheet Magswitch BoomerAngle 600 – 8100090 (US and CA)
- Spec Sheet Magswitch BoomerAngle 150 – 8100091 (AU and NZ)
- Spec Sheet Magswitch BoomerAngle 400 – 8100453 (AU and NZ)
- Spec Sheet Magswitch BoomerAngle 600 – 8100090 (AU and NZ)
Related Products
MagJig
Powerful magnetic clamps for custom fixtures. Easy to install, flush-mount ready, and ideal for applying downward pressure in jigs and guides.

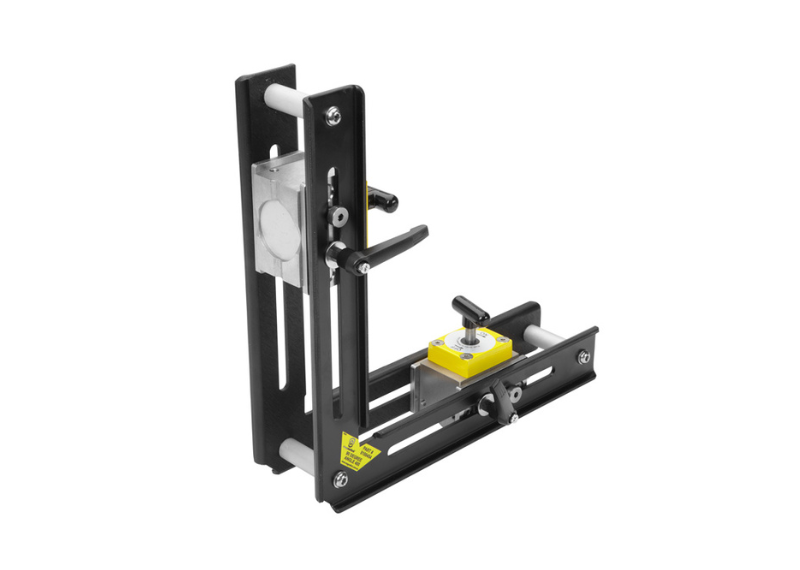

90° Angle
Experience unmatched versatility with Magswitch 90° Welding Angles, designed for precision, power, and ease of use. Built with advanced Magswitch magnetic technology, these angles deliver strong holding force and accurate alignment—ideal for working with larger and heavier steel components.

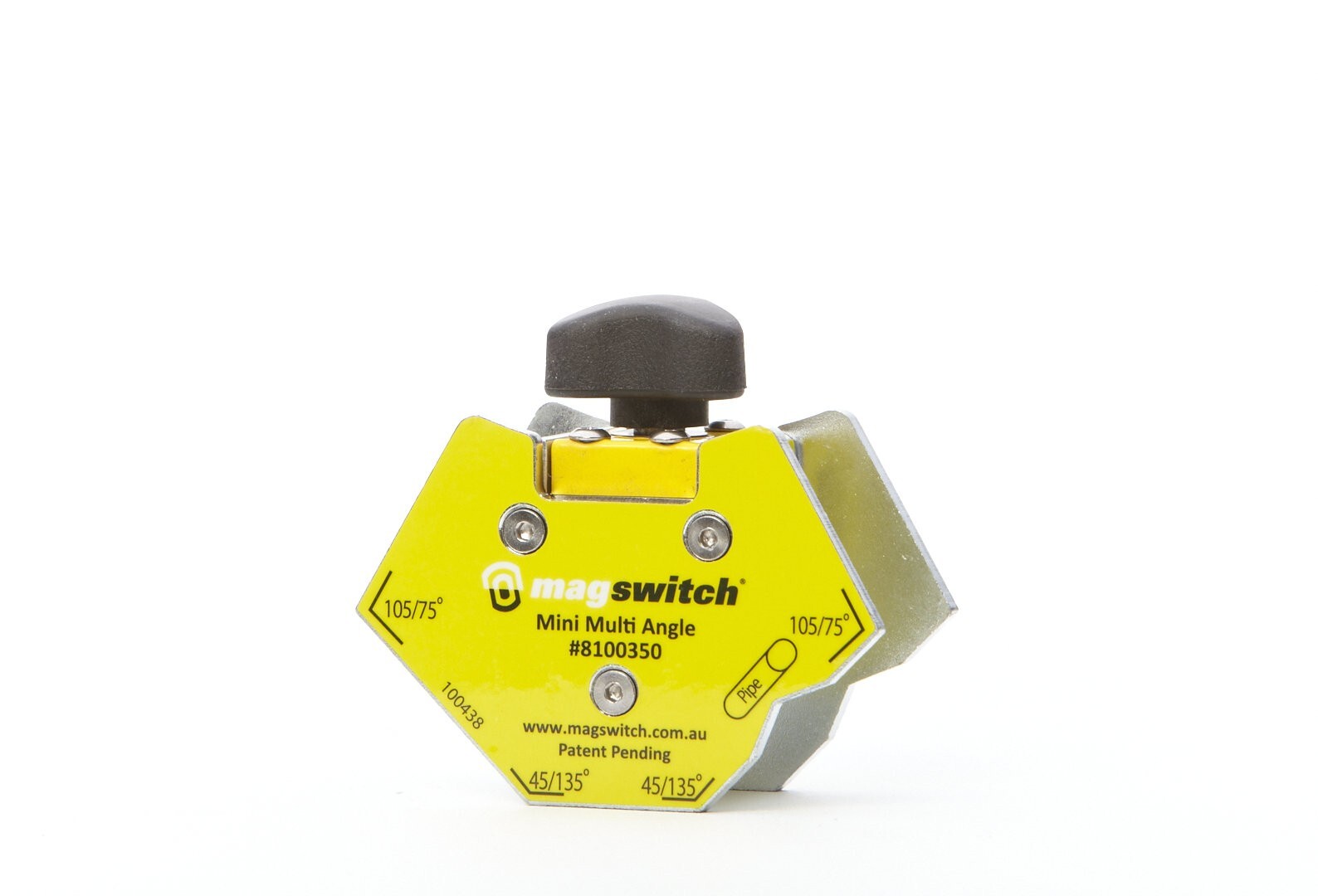

Mini Angle
