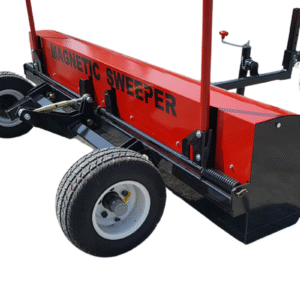

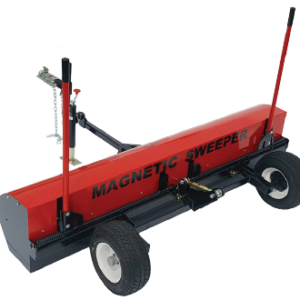

Caiman Tow-Behind Magnetic Sweeper
Designed to efficiently remove metal debris such as nails, screws, wire, and discarded fabrication pieces while being towed across job sites.
Price:
Request a Quote
Shipping Estimate:
Overview
The Caiman Tow‑Behind Magnetic Sweeper is designed to efficiently remove metal debris such as nails, screws, wire, and discarded fabrication pieces while being towed across job sites. By preventing flat tyres, it reduces costs, interruptions, and delays. With an 82‑inch sweeping width, it covers large areas quickly and attaches easily to vehicles using a 2‑inch ball coupler with six adjustable hitch height settings.
The Caiman can lift a 2½‑inch nail from 10½ inches above the ground, providing strong pickup power even in dirt and gravel. The sweeping height can be adjusted continuously from 2 to 6 inches using the top link system. Its torsion ride suspension smooths out rough terrain, while the wrap‑around design prevents debris from falling off even if the pan touches the ground.
Cleaning is simple thanks to the spring‑assisted debris release system, which minimizes operator effort and bending. The sweeper is powered by permanently charged grade C8 magnets, fully enclosed in stainless steel for durability. Heavy‑duty steel frame construction, stainless steel debris pan, and hub/spindle wheels ensure long‑lasting performance in demanding industrial and commercial environments.
FEATURES
• Cleaning method: Dual Spring Assist Debris Release Handles for easy and efficient clean off
• Sweeping height adjustability: Continuous adjustment from 2 to 6 inches
• Magnet type: Permanently charged Ceramic Grade 8 magnets that never need recharging
• Max. lifting height (using 2.5″, 8 penny nails): 266 mm
• Heavy duty steel frame construction ensures long term durability
• Carlisle Foam filled Flat Proof 16 1/2” x 6 1/2” tires won’t go flat when driving over debris
• 5 bolt hub and spindle wheels
• Permanently charged grade C8 magnets that will never need to be recharged
• Fully welded stainless steel magnet housing and bottom pan for long term durability
• Fully enclosed magnet keeps debris out and off of the magnet and protects the main unit from the elements
Product Models
| Product | Dimensions (L x W x H) | Net Weight | Width | Add to cart or quote buttons | |
|---|---|---|---|---|---|
 | CM82 | Shipping dimensions: 2,413 mm L x 1,016 mm W x 610 mm H Shipping dimensions: 8 ft L x 3 ft W x 2 ft H | 408 kg
Total shipping weight: 453 kg 911 lbs Total shipping weight: 1,011 lbs | 2,082 mm 7 ft | |
Product Documents
