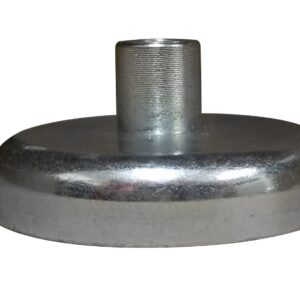

D-Series Pot Magnet – Female Threaded Boss
Features a female thread and delivers powerful holding strength. The threaded design accommodates any compatible threaded attachments, making the magnet versatile enough to be used across multiple different applications.
Price:
Request a Quote
Shipping Estimate:
Overview
The D-Series Pot Magnets feature a female thread and deliver powerful holding strength. With diameters ranging from 10mm to 75mm, the threaded design of these magnets allows secure mounting to magnetic surfaces for a bolt, hook or any threaded attachment. These high-strength rare earth magnets feature a durable zinc-plating which helps shield against chipping and cracking while the casing enhances the magnetic field through the operational face. Perfect for quick, secure mounting to steel surfaces without drilling or tapping, this female-threaded magnet is a great solution when a permanent fixing isn’t needed or viable. Its magnetic design lets you reposition, remove, or reuse it as often as you need.
FEATURES
Product Models
| Product | D | D1 | D2 | H | Attraction | DeadWeight | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|
 | 10×5 mm MSAD10 | 10 mm 0.4 in | 3 mm 0.1 in | 12 mm 0.5 in | 5 mm 0.2 in | 2.2 kg 5 lbs | 3.5 g 0.1 oz | |
| 16×5 mm MSAD16 | 16 mm 0.6 in | 4 mm 0.2 in | 13 mm 0.5 in | 5 mm 0.2 in | 5.5 kg 12 lbs | 8 g 0.3 oz | |
| 20×7 mm MSAD20 | 20 mm 0.8 in | 4 mm 0.2 in | 15 mm 0.6 in | 7 mm 0.3 in | 9 kg 20 lbs | 17 g 0.6 oz | |
| 25×8 mm MSAD25 | 25 mm 1.0 in | 5 mm 0.2 in | 17 mm 0.7 in | 8 mm 0.3 in | 22 kg 49 lbs | 32 g 1 oz | |
| 32×8 mm MSAD32 | 32 mm 1 in | 6 mm 0.2 in | 18 mm 0.7 in | 8 mm 0.3 in | 34 kg 76 lbs | 47 g 2 oz | |
| 36×8 mm MSAD36 | 36 mm 1 in | 6 mm 0.2 in | 18 mm 0.7 in | 8 mm 0.3 in | 41 kg 92 lbs | 59 g 2 oz | |
| 42×9 mm MSAD42 | 42 mm 2 in | 6 mm 0.2 in | 20 mm 0.8 in | 9 mm 0.4 in | 68 kg 152 lbs | 87 g 3 oz | |
| 48×11.5 mm MSAD48 | 48 mm 2 in | 8 mm 0.3 in | 24 mm 0.9 in | 11.5 mm 0.5 in | 81 kg 181 lbs | 132 g 5 oz | |
| 60×15 mm MSAD60 | 60 mm 2 in | 8 mm 0.3 in | 30 mm 1 in | 15 mm 0.6 in | 113 kg 252 lbs | 270 g 10 oz | |
| 75×18 mm MSAD75 | 75 mm 3 in | 10 mm 0.4 in | 34 mm 1 in | 18 mm 0.7 in | 164 kg 366 lbs | 552 g 1 lbs | |
