MagMount
Single-lever magnetic mount with dual magnets for stable support. Fixed bar grips flat steel; swivel bar adapts to round or uneven surfaces.
Price:
Request a Quote
Overview
The Magswitch MagMount features a single-lever magnetic switch for fast, secure placement and repositioning of tools and fixtures. Its dual top-mounted magnets provide strong support across wider spans, while the fixed bar magnet grips flat steel surfaces and the swivel bar magnet adapts to round or uneven shapes—making it ideal for dynamic work environments.
FEATURES
- Fixed bar magnet is for flat steel
- Swivel bar magnet is for round or uneven shapes
- Multiple threaded holes on the top
- Perfect for top mount tools, measuring and security devices
- Magnet turns completely On and Off – Magnet stays clean
- Does not require an electrical power source
- Holds flat and round surfaces of steel
Product Models
| Product | 2:1 Shear Working Load | Full Saturation Thickness | Magnetic Pole Footprint | Max Breakaway | Net Weight | Overall Height | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|

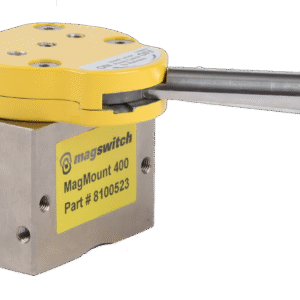

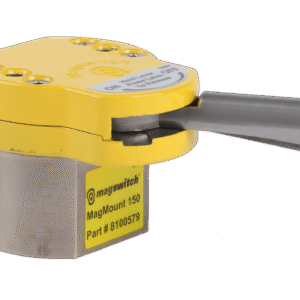

 | MagMount 150 8100579 | 4.8 kg | 2.5 mm | 40 x 31.2 mm | 68 kg | 0.4 kg | 32 mm | |

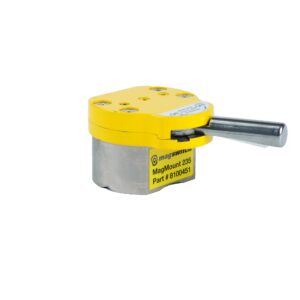

 | MagMount 235 8100451 | 4.75 mm | 56 x 42 mm | 106 kg | 0.5 kg | 64 x 41.26 mm | ||

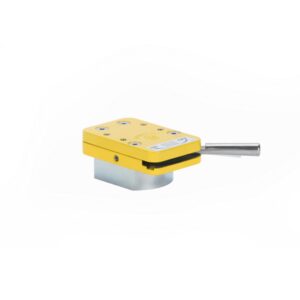

 | MagMount 300 8100595 | 4.75 mm | 71.8 x 51.5 mm | 111 kg | 0.5 kg | 43.8 mm | ||
 | MagMount 400 8100523 | 6 mm | 64 x 41.26 mm | 182 kg | 0.5 kg | 65 mm | ||

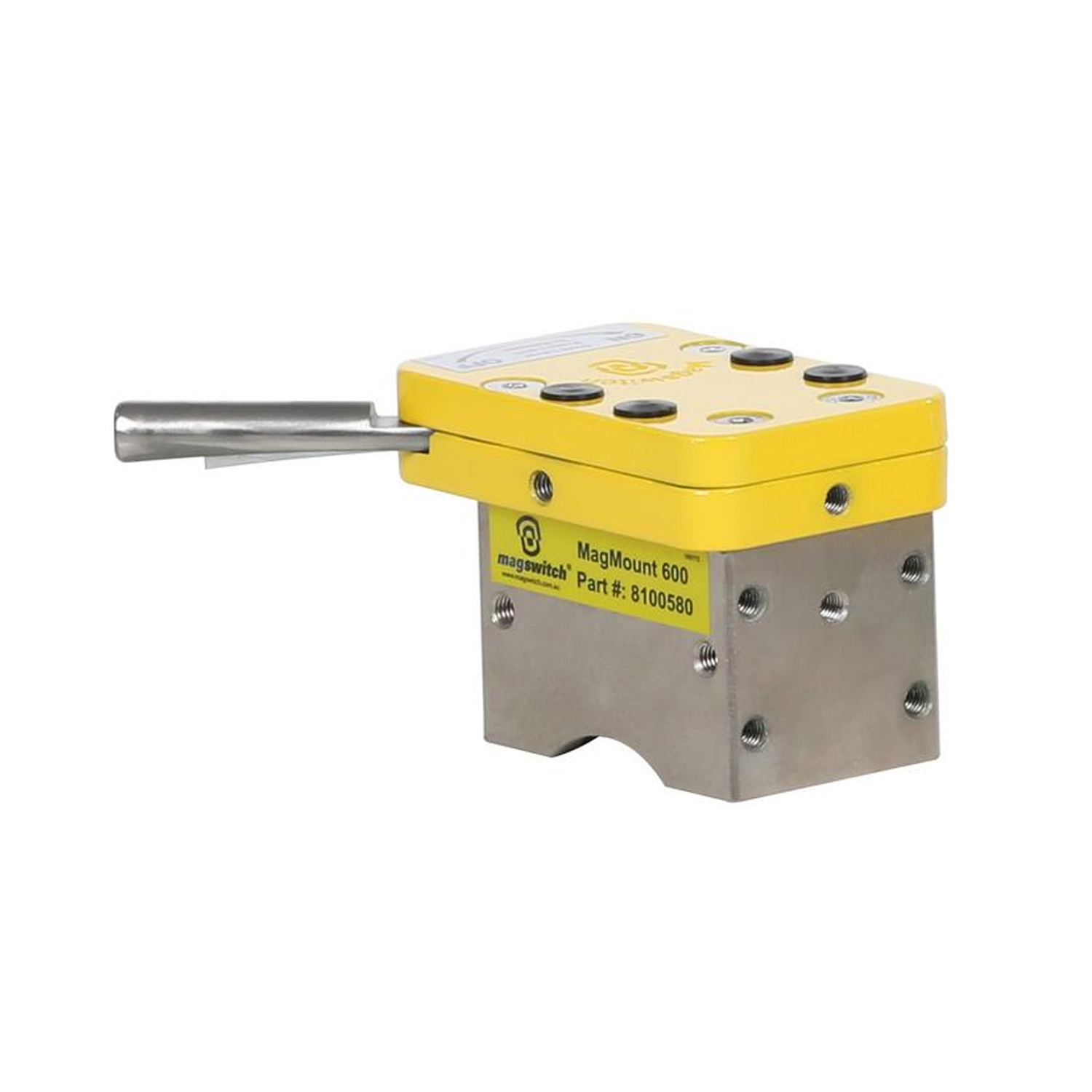

 | MagMount 600 8100580 | 27 kg | 10 mm | 75 x 51.5 mm | 272 kg | 1.5 kg | 72 mm | |
Product Documents
- Spec Sheet Magswitch MagMount 150 – 8100579 (US and CA)
- Spec Sheet Magswitch MagMount 235 – 8100451 (US and CA)
- Spec Sheet Magswitch MagMount 300 – 8100595 (US and CA)
- Spec Sheet Magswitch MagMount 400 – 8100523 (US and CA)
- Spec Sheet Magswitch MagMount 600 – 8100580 (US and CA)
- Spec Sheet Magswitch MagMount 150 – 8100579 (AU and NZ)
- Spec Sheet Magswitch MagMount 235 – 8100451 (AU and NZ)
- Spec Sheet Magswitch MagMount 300 – 8100523 (AU and NZ)
- Spec Sheet Magswitch MagMount 400 – 8100523 (AU and NZ)
- Spec Sheet Magswitch MagMount 600 – 8100580 (AU and NZ)
Related Products

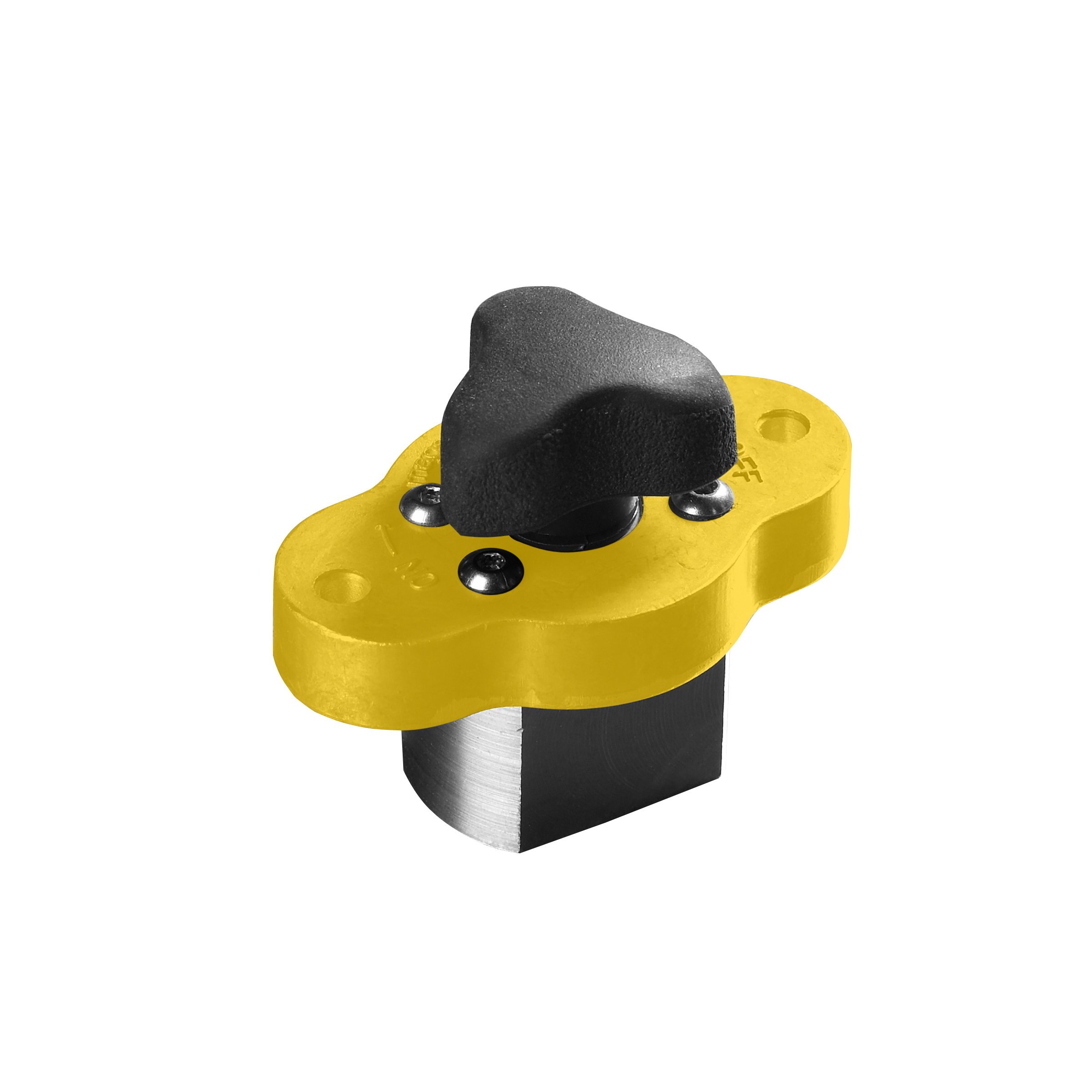

MagJig
Powerful magnetic clamps for custom fixtures. Easy to install, flush-mount ready, and ideal for applying downward pressure in jigs and guides.

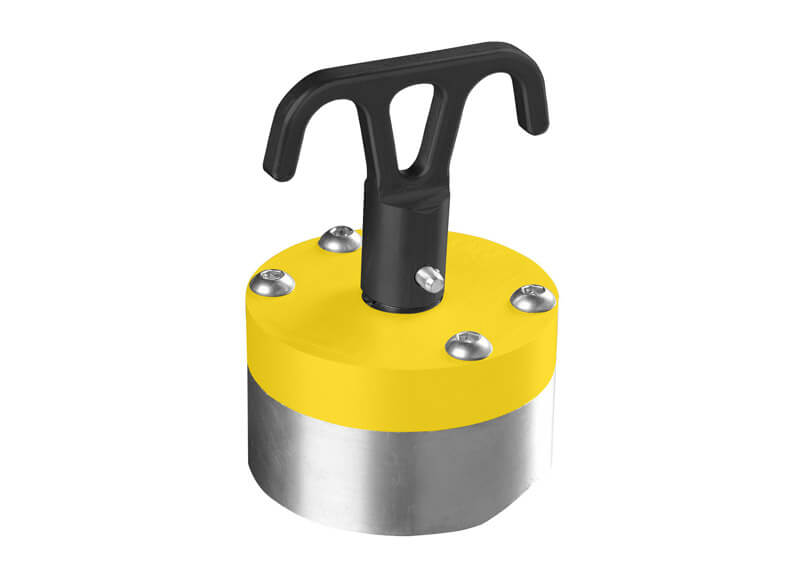

Mag-Utility Hook
