Mini Angle
Compact magnetic angle tool with multiple angle options and true on/off control. Stays clean, easy to use, and built for long-term reliability.
Price:
Request a Quote
Overview
The Magswitch Mini Multi Angle delivers more angle options in one compact tool than any other magnetic angle on the market. With true on/off magnetic control, these mini angles stay clean, perform reliably, and eliminate the hassle of weak or non-switchable magnets.
Perfect for welding, fixturing, and repetitive setups at uncommon angles, the Mini Multi Angle is built for convenience and long-term durability. Once you try it, you won’t settle for anything less.
FEATURES
- Offers 45/135° + 60/120°+ 75/105° + 90° angles
- Sturdy and compact
- Magnet turns completely On and Off – stays clean
- Holds flat and round surfaces of steel
Product Models
| Product | Max Breakaway | Full Saturation Thickness | Max Shear | Net Weight | Magnetic Pole Footprint | Overall Height | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|
 | Mini Angle 8100352 | 40 kg | 3.05 mm | 2.7 kg | 0.18 kg | 59.5 x 32 mm | 55 mm | |

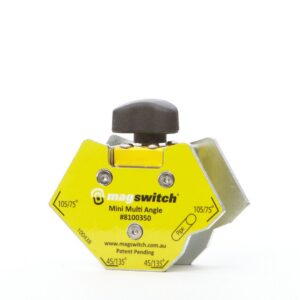

 | Mini Multi Angle 8100350 | 40 kg | 2.7 kg | 0.2 kg | 32 x 72 mm | 65 mm | ||

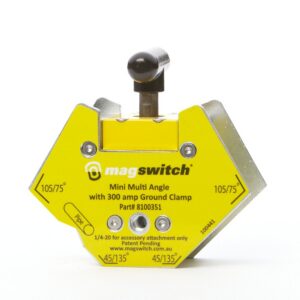

 | Mini Multi Angle With 300 Amp Ground Clamp 8100351 | 67 kg | 3.05 mm | 2.7 kg | 0.4 kg | 90.5 x 44 mm | 87 mm | |

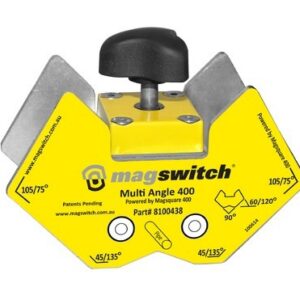

 | Mini Multi Angle 400 8100438 | 181 kg | 3.43 mm | 9 kg | 1.2 kg | 64 x 41.26 mm | 95 mm | |
Product Documents
- Spec Sheet Magswitch Mini Angle – 8100352 (US and CA)
- Spec Sheet Magswitch Mini Multi Angle – 8100350 (US and CA)
- Spec Sheet Magswitch Mini Multi Angle w 300 Amp Ground Clamp – 8100351 (US and CA)
- Spec Sheet Magswitch Multi Angle 400 – 8100438 (US and CA)
- Spec Sheet Magswitch Mini Angle – 8100352 (AU and NZ)
- Spec Sheet Magswitch Mini Multi Angle – 8100350 (AU and NZ)
- Spec Sheet Magswitch Mini Multi Angle w 300 Amp Ground Clamp – 8100351 (AU and NZ)
- Spec Sheet Magswitch Multi Angle 400 – 8100438 (AU and NZ)
