Pivot Angle 150
Adjustable magnetic welding angle from 22° to 270° with 183 lb hold.
Price:
Price range: $275.99 through $287.99 USD
Shipping Estimate:
Overview

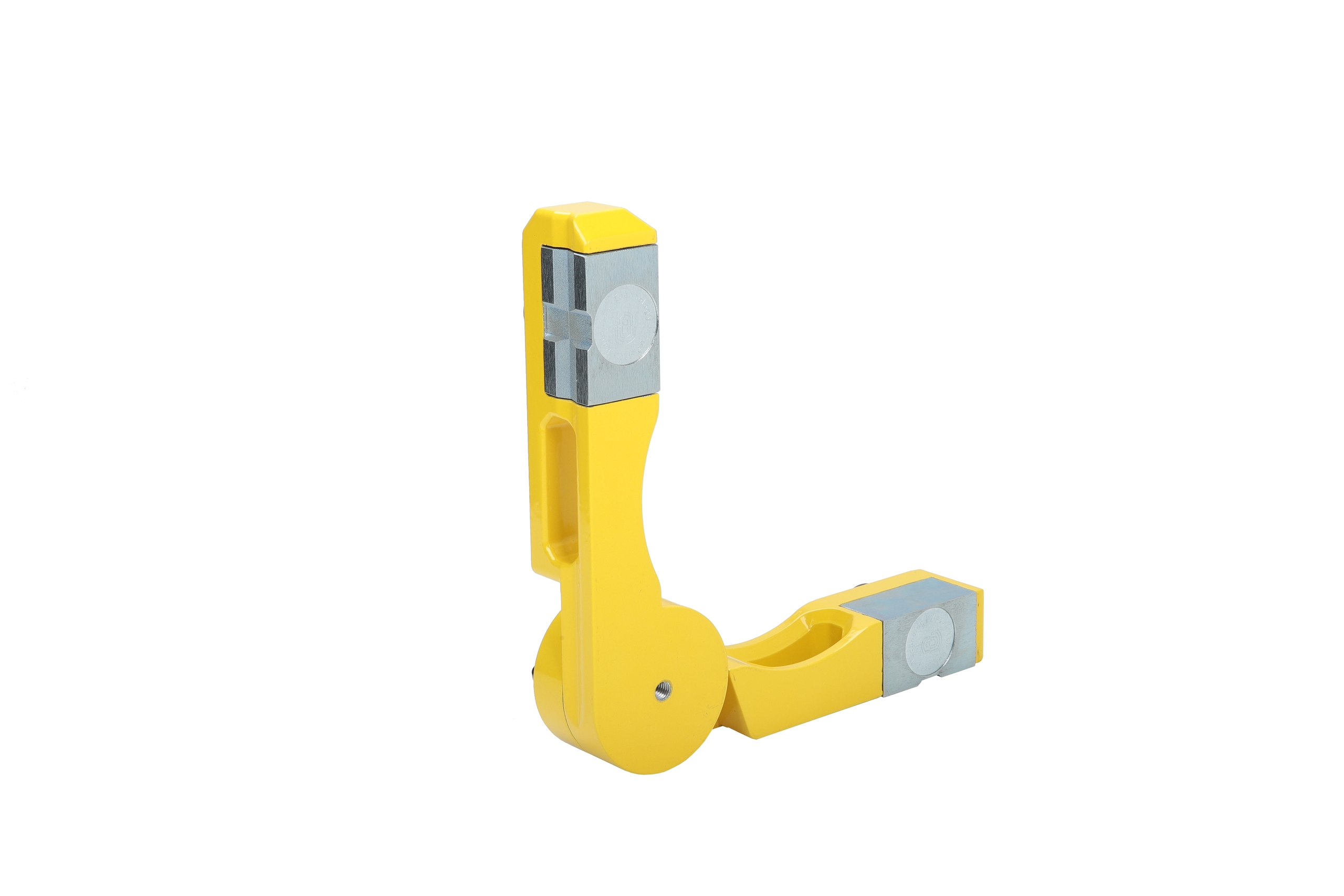

The Magswitch Pivot Angle offers a wide range of angle settings from 22° to 270°, making it ideal for repetitive welding tasks at uncommon angles. Each axis features a powerful 183 lb (83 kg) magnetic hold, ensuring stability even with heavy steel.
A single pivot point at the elbow allows smooth adjustment, and the quick-lock lever secures your angle in seconds. The built-in dial provides 5° increment indicators for precise alignment. With exposed magnets on each axis, the tool can anchor to a table or wall while simultaneously holding your workpiece—perfect for complex setups and increased efficiency.
FEATURES
- Single lock at the elbow to secure your angle
- Dial on elbow has indicators every 5 degrees
- Detents at every 45 degrees for rapid adjustment
- Magnets turn completely On and Off – Magnets stay clean
- Does not require an electrical power source
- Holds flat and round surfaces of steel
Product Models
| Product | Full Saturation Thickness | Magnetic Pole Footprint | Max Breakaway | Max Safe Shear | Net Weight | Overall Height | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|

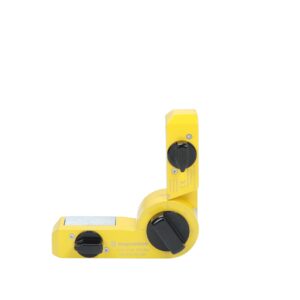

 | Pivot Angle 150 Mini 81001269 | 4.8 mm 0.2 in | 26.4 x 54 mm 1 x 2 in | 83 kg 185 lbs | 11 kg 25 lbs | 1 kg 2 lbs | 53.4 mm 2 in | |

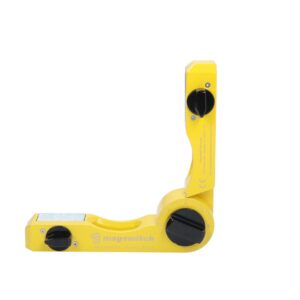

 | Pivot Angle 150 Max 81001215 | 4.8 mm 0.2 in | 26.4 x 54 mm 1 x 2 in | 83 kg 185 lbs | 11 kg 25 lbs | 1.5 kg 3 lbs | 53.4 mm 2 in | |
