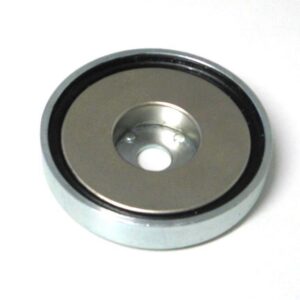

B-Series Pot Magnet – Straight Hole
Designed with a straight-through hole, allowing it to be bolted from the magnet’s side with a hexagon or button head bolt, offering flexibility across a wide range of applications.
Price:
Request a Quote
Shipping Estimate:
Overview
The B-Series Pot Magnets feature a straight-through hole, allowing them to be bolted from the magnet’s side using a hexagon or button head bolt, providing flexibility across a wide range of applications. Available in diameters from 16 mm to 88 mm, they are ideal for mounting, positioning, or securing components and tools. Compact yet versatile, these magnets open endless possibilities for industrial, workshop, and DIY applications. These high-strength rare earth magnets feature a durable zinc-plated casing and are single-sided, ensuring concentrated holding power on one face for consistent, reliable performance.
FEATURES
Product Models
| Product | D | D1 | D2 | H | Attraction | DeadWeight | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|
 | 16×5 mm MSAB16 | 16 mm 0.6 in | 3.5 mm 0.1 in | 6.5 mm 0.3 in | 5 mm 0.2 in | 4 kg 9 lbs | 6 g 0.2 oz | |
| 20×7 mm MSAB20 | 20 mm 0.8 in | 4.5 mm 0.2 in | 8 mm 0.3 in | 7 mm 0.3 in | 6 kg 13 lbs | 12 g 0.4 oz | |
| 25×8 mm MSAB25 | 25 mm 1.0 in | 5.5 mm 0.2 in | 9 mm 0.4 in | 8 mm 0.3 in | 14 kg 31 lbs | 23 g 0.8 oz | |
| 32×8 mm MSAB32 | 32 mm 1 in | 5.5 mm 0.2 in | 9 mm 0.4 in | 8 mm 0.3 in | 23 kg 51 lbs | 36 g 1 oz | |
| 36×9 mm MSAB36 | 36 mm 1 in | 6.5 mm 0.3 in | 11 mm 0.4 in | 9 mm 0.4 in | 29 kg 65 lbs | 50 g 2 oz | |
| 42×9 mm MSAB42 | 42 mm 2 in | 6.5 mm 0.3 in | 11 mm 0.4 in | 9 mm 0.4 in | 32 kg 71 lbs | 73 g 3 oz | |
| 48×11.5 mm MSAB48 | 48 mm 2 in | 8.5 mm 0.3 in | 15 mm 0.6 in | 11.5 mm 0.5 in | 63 kg 141 lbs | 114 g 4 oz | |
| 60×15 mm MSAB60 | 60 mm 2 in | 8.5 mm 0.3 in | 15 mm 0.6 in | 15 mm 0.6 in | 95 kg 212 lbs | 240 g 9 oz | |
| 75×18 mm MSAB75 | 75 mm 3 in | 10.5 mm 0.4 in | 18 mm 0.7 in | 18 mm 0.7 in | 155 kg 346 lbs | 471 g 1 lbs | |
| 88×20 mm MSAB88 | 88 mm 3 in | 12.5 mm 0.5 in | 20 mm 0.8 in | 20 mm 0.8 in | 180 kg 402 lbs | 480 g 1 lbs | |
