MagSquare
Multi-use magnetic blocks for welding, cutting, and fixturing. Secure flat or round steel, align angles, and reduce setup time with powerful, precise control.
Price:
Request a Quote
Overview
Magswitch MagSquares are the ultimate magnetic solution for welding, cutting, and fabrication. Use them to align and secure flat or round steel, pull corners, guide cuts, or build custom fixtures. With powerful magnetic hold and precise control, MagSquares dramatically reduce setup time and improve accuracy.
Once you experience their versatility and time-saving performance, you’ll want the full range in your toolbox.
FEATURES
- Multiplane magnetic grip on 5 sides
- Machined at 90-degrees with pre-tapped holes for mounting
- Mounts anywhere – no limitations like clamps
- Magnet turns completely On and Off – Magnet stays clean as you can wipe off debris easily
- Does not require an electrical power source
- Holds flat and round surfaces of steel
Product Models
| Product | 2:1 Shear Working Load | Full Saturation Thickness | Magnetic Pole Footprint | Max Breakaway | Net Weight | Overall Height | Add to cart or quote buttons | |
|---|---|---|---|---|---|---|---|---|

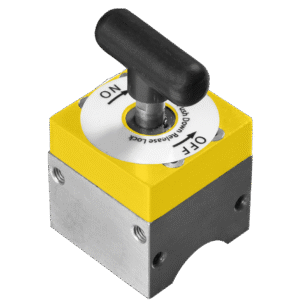

 | MagSquare 165 8100494 | 8.4 kg | 6.35 mm | 48 x 31 mm | 68 kg | 0.23 kg | 64.25 mm | |
 | MagSquare 400 8100238 | 18 kg | 6 mm | 64 x 41.26 mm | 181 kg | 0.91 kg | 90 mm | |

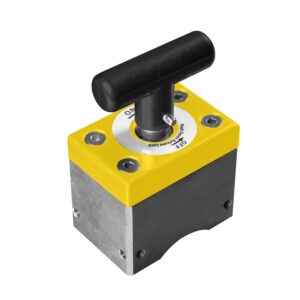

 | MagSquare 600 8100106 | 27 kg | 10 mm | 75 x 51.5 mm | 272 kg | 1.36 kg | 106 mm | |

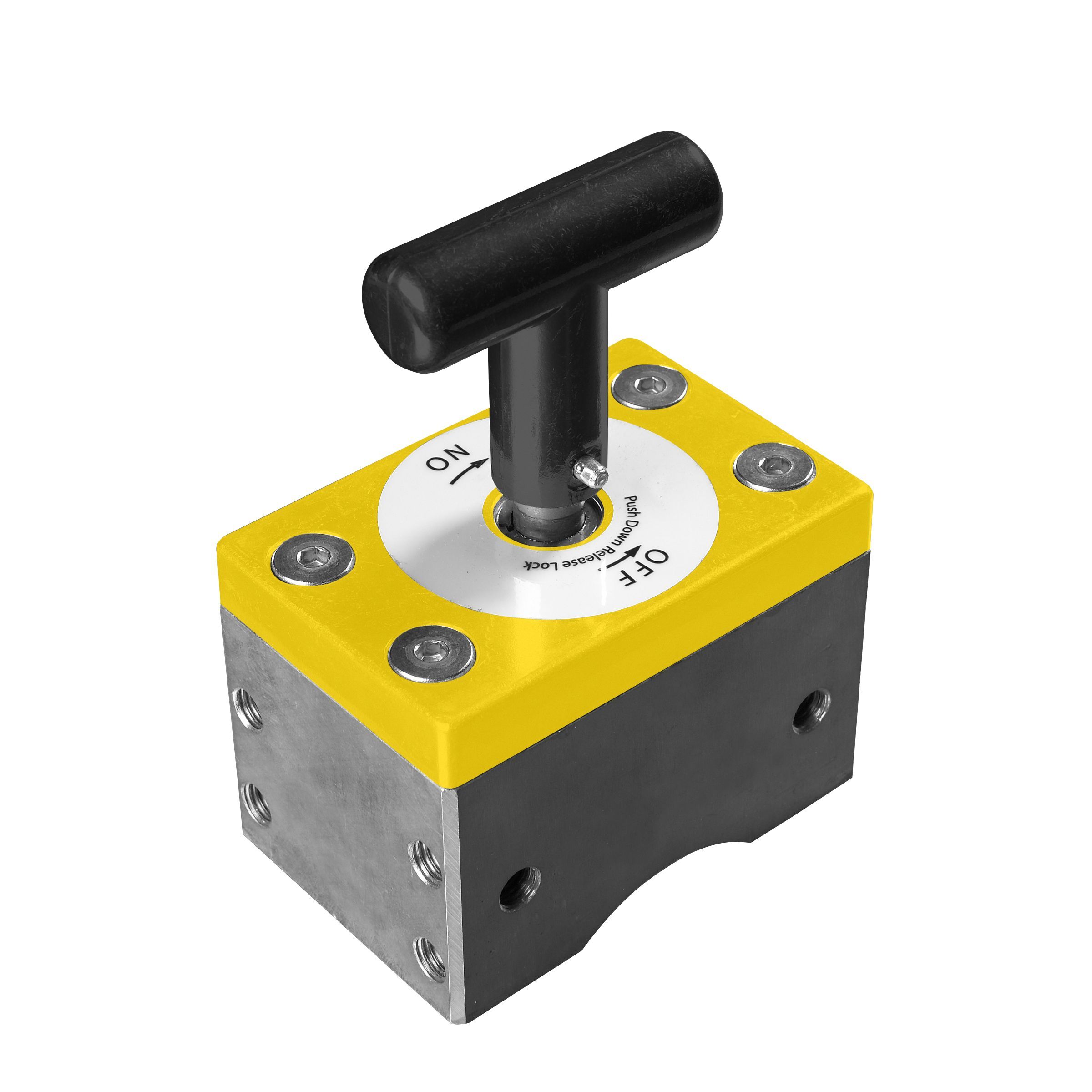

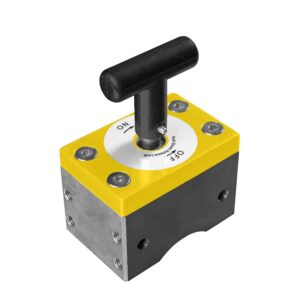

 | MagSquare 1000 8100099 | 67 kg | 13 mm | 72 x 108 mm | 454 kg | 3.36 kg | 147 mm | |
Product Documents
- Spec Sheet Magswitch MagSquare 165 – 8100494 (US and CA)
- Spec Sheet Magswitch MagSquare 400 – 8100238 (US and CA)
- Spec Sheet Magswitch MagSquare 600 – 8100106 (US and CA)
- Spec Sheet Magswitch MagSquare 1000 – 8100099 (US and CA)
- Spec Sheet Magswitch MagSquare 165 – 8100494 (AU and NZ)
- Spec Sheet Magswitch MagSquare 400 – 8100238 (AU and NZ)
- Spec Sheet Magswitch MagSquare 600 – 8100106 (AU and NZ)
- Spec Sheet Magswitch MagSquare 1000 – 8100099 (AU and NZ)
